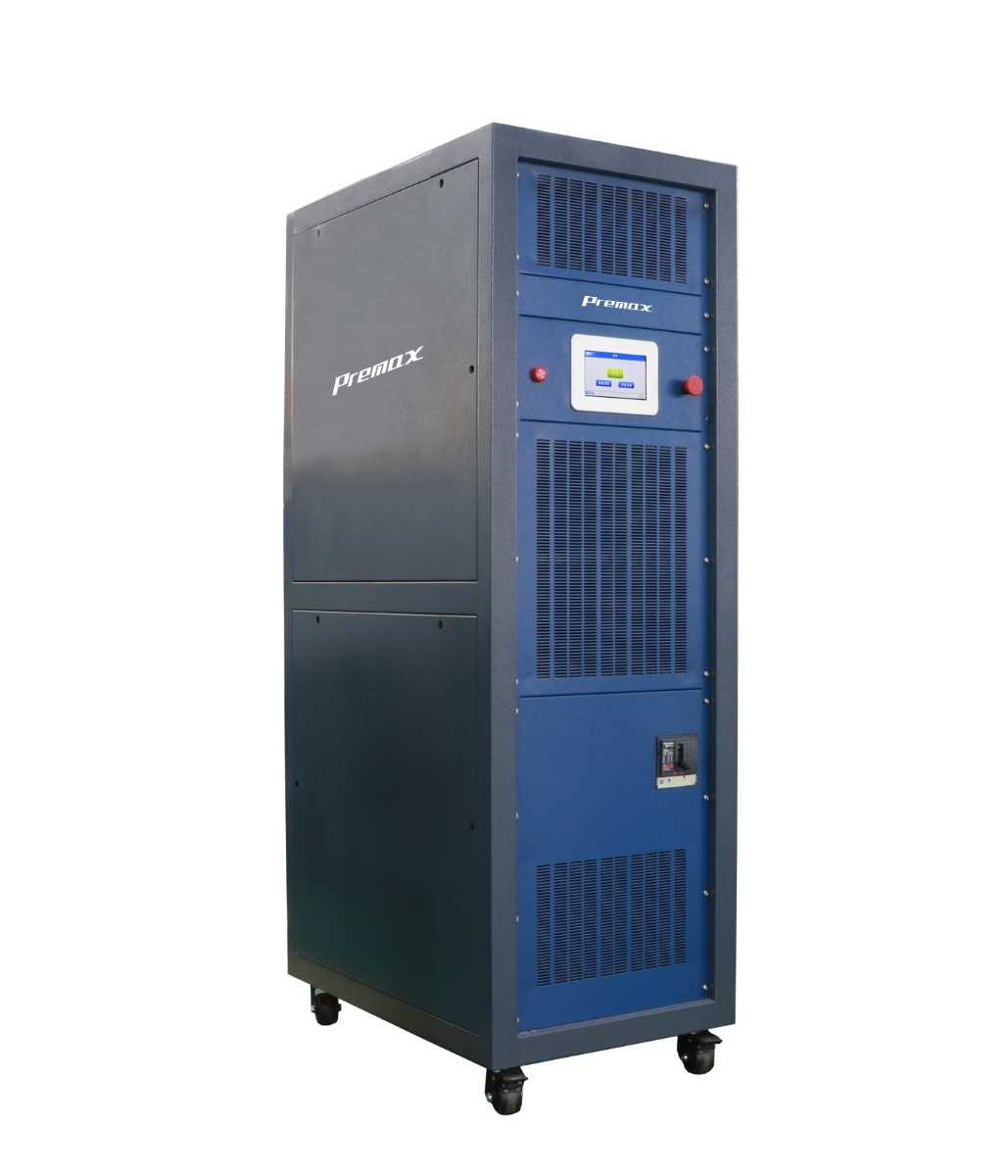

POWER AMPLIFIER VSA-D Series
Post Date:
VSA-D power amplier products adopt the latest ARM chip to realize easy-to-operate human-machine interactive interface, multi-stage closedloop control strategy, advanced digital control algorithm to achieve high performance, low noise, high reliability, etc.
Touch ScreenMore convenient man-machine interactionHigh SNRThe waveform distortion is improvedRemote ControlBy Premax vibration control software |
 |
Which Power Amplier is right for you?
|
Model |
VSA-D402A |
VSA-D802A |
VSA-D123A |
VSA-D243A |
VSA-D323A |
VSA-D563A |
|
Maximum Power Output |
4 kVA |
8 kVA |
12 kVA |
24 kVA |
32 kVA |
56 kVA |
|
Maximum Output Current (rms) |
35A |
70A |
105A |
210A |
280A |
500A |
|
Exciter Current (DC) |
10A |
20A |
30A |
45A |
55A |
70A |
|
Self-Protection |
Over-voltage, over-current, over-temperature, displacement, cooling system failure, module failure, etc. |
|||||
|
Front Panel Indicators |
V&I display screen, cooling fan/warning indicator, gain adjust, emergency stop button |
|||||
|
Operating Temperature |
0°C ~ 40°C |
|||||
|
Operating Humidity |
0 to 90% RH non-condensing |
|||||
|
Dimensions(L*W*H) (mm) |
480×660×1110 |
600×880×1570 |
600×940×1965 |
|||
|
Weight |
240 kg |
240 kg |
390 kg |
600 kg |
660 kg |
820 kg |
Power Amplifier Remote Control
| ‘Allow you to operate the power amplier from the control room.’ |  |
Remote Control through the Network Cable:
|
 |
